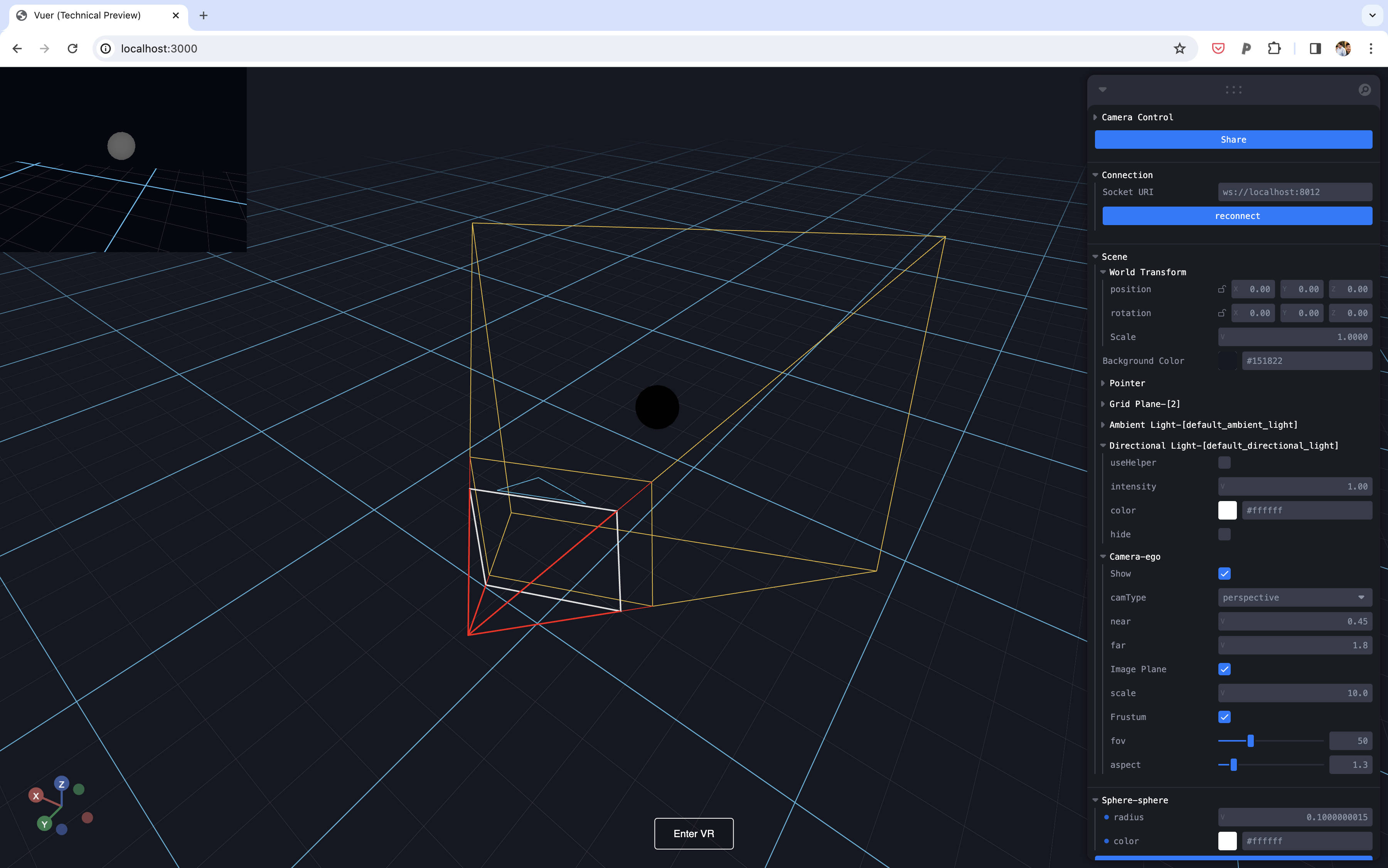

Collecting Render from a Virtual Camera

This example requires saving and loading data from the local disk.

Let’s first instantiate a local ML-Logger instance.

from ml_logger import ML_Logger
from pandas import DataFrame

logger = ML_Logger(root=os.getcwd(), prefix="assets")
doc.print(logger)

matrices = logger.load_pkl("metrics.pkl")
matrices = DataFrame(matrices)["matrix"].values.tolist()

ML_Logger(root="/Users/ge/mit/vuer/docs/tutorials/camera",
          prefix="assets")

from asyncio import sleep, TimeoutError

import numpy as np

from vuer import Vuer, VuerSession
from vuer.events import ClientEvent
from vuer.schemas import Sphere, DefaultScene, CameraView

app = Vuer(queries=dict(grid=False))

In the past we use the “CAMERA_VIEW” event to collect the rendered image. This is only supported in the stream=“frame” or stream=“time” mode. Since these modes offer little control for the backend, we offer the synchronous grab_render RPC api. This api is only available in the stream=“ondemand”

frame and time mode:

This should not print anything because we set the CameraView to stream=“ondemand” mode.

@app.add_handler("CAMERA_VIEW")
async def collect_render(event: ClientEvent, sess: VuerSession):
    global counter
    print("return render event with keys: [", end="")
    print(*event.value.keys(), sep=", ", end="]\r")

ondemand mode:

# We don't auto start the vuer app because we need to bind a handler.
@app.spawn(start=True)
async def show_heatmap(proxy):
    proxy.set @ DefaultScene(
        Sphere(
            key="sphere",
            args=[0.1, 20, 20],
            position=[0, 0, 0],
            rotation=[0, 0, 0],
            materialType="depth",
        ),
        rawChildren=[
            CameraView(
                fov=50,
                width=320,
                height=240,
                key="ego",
                position=[-0.5, 1.25, 0.5],
                rotation=[-0.4 * np.pi, -0.1 * np.pi, 0.15 + np.pi],
                stream="ondemand",
                fps=30,
                near=0.45,
                far=1.8,
                showFrustum=True,
                downsample=1,
                distanceToCamera=2
                # dpr=1,
            ),
        ],
        # hide the helper to only render the objects.
        show_helper=False,
    )
    await sleep(0.0)

    i = 0
    while True:
        i += 1
        h = 0.25 - (0.00866 * (i % 120 - 60)) ** 2
        position = [0.2, 0.0, 0.1 + h]

        proxy.update @ [
            Sphere(
                key="sphere",
                args=[0.1, 20, 20],
                position=position,
                rotation=[0, 0, 0],
                materialType="depth",
            ),
            CameraView(
                fov=50,
                width=320,
                height=240,
                key="ego",
                matrix=matrices[i % len(matrices)],
                stream="ondemand",
                fps=30,
                near=0.45,
                far=1.8,
                showFrustum=True,
                downsample=1,
                distanceToCamera=2,
                movable=False,
            ),
        ]
        await sleep(0.0)
        try:
            result = await proxy.grab_render(downsample=1, key="ego")
            print("you render came back with keys: [", end="")
            print(*result.value.keys(), sep=", ", end="]\r")
        except TimeoutError:
            print("timed out.")
